LG Triple Water Inlet Valve 5221EA1009S 12V DC

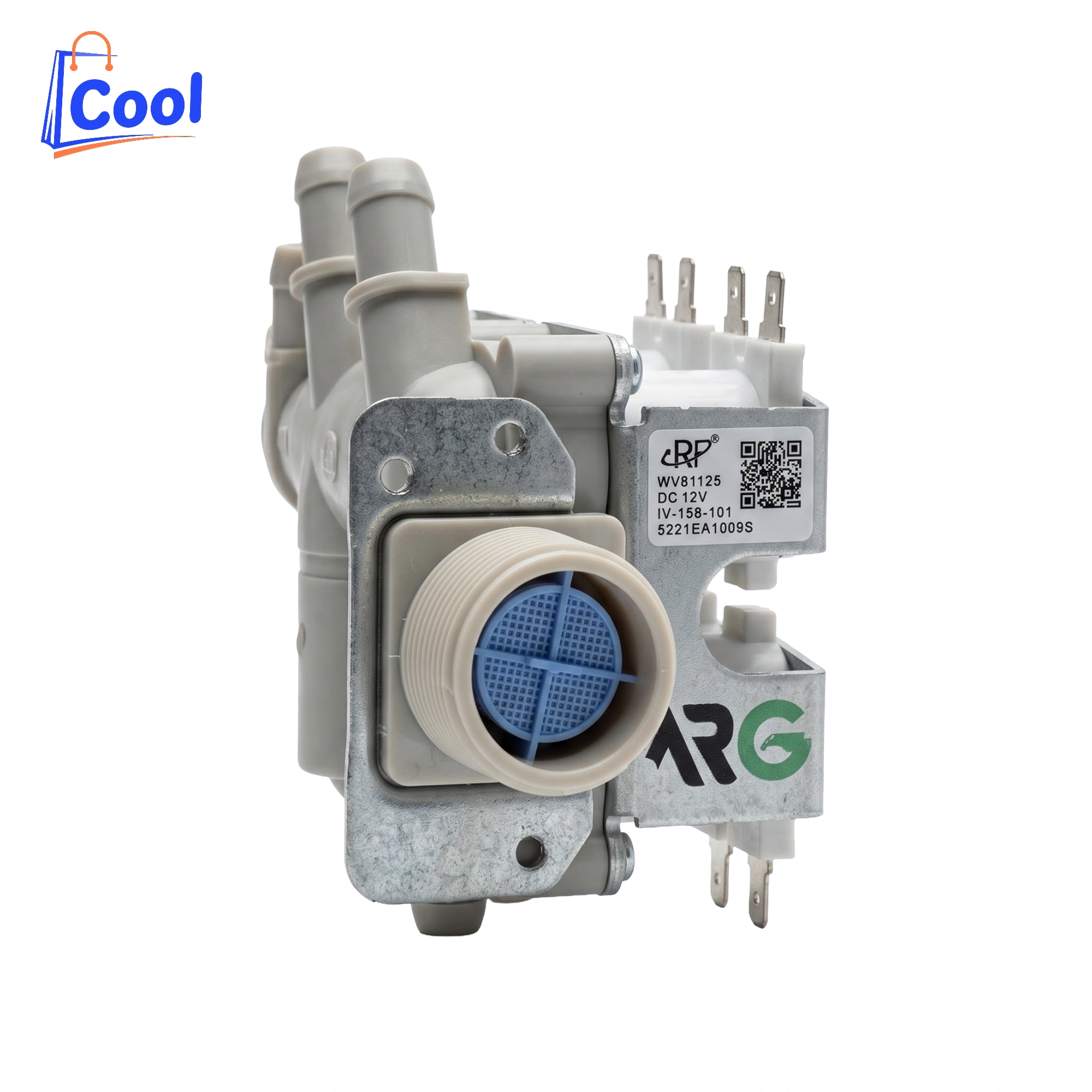

ال صمام دخول الماء رقم 5221EA1009S is the three-outlet solenoid valve controlling water entry into an LG washing machine on command from the control board. It operates at 12 V DC and carries three independent coils, each opening a separate water path, along with four spade terminals and a blue mesh filter at the threaded water inlet.
متوفر في Cool.sa inside Saudi Arabia, with a VAT invoice and compatibility confirmed before you order.
أبرز المميزات
- Three outlets بثلاثة ملفات كهرومغناطيسية مستقلة
- جهد 12 فولت مستمر (DC) لغسالات LG منخفضة الجهد
- Part number 5221EA1009S
- Coil code WV81125, reference IV-158-101
- Four flat spade terminals
- Integrated blue mesh filter at the inlet
- Threaded inlet for direct supply hose connection
- Metal mounting bracket with fixing holes
- تركيب مباشر بديل للصمام الأصلي
المواصفات الفنية
| المواصفة | القيمة |
| رقم القطعة | 5221EA1009S |
| رمز الملف | WV81125 |
| Reference | IV-158-101 |
| نوع القطعة | صمام دخول ماء كهرومغناطيسي |
| الجهد الكهربائي | 12 V DC |
| عدد المخارج | 3 (ثلاثي) |
| عدد الملفات | 3 |
| Number of terminals | 4 |
| الماركة | إل جي |
| الفلتر | Integrated blue inlet mesh filter |
| Inlet type | مُخيط |
| التركيب | Metal bracket with fixing holes |
لماذا تشتري صمام الغسالة من كول
- We match the complete number, not just its opening. Send what is printed on your part and we identify the correct version within the 5221EA family.
- Complete clarity on voltage, outlet count and terminal count. All published before you pay.
- مخزون داخل المملكة with fast delivery.
- فاتورة ضريبية نظامية مقبولة في مشتريات الشركات والمنشآت والسكن العمالي.
- أسعار كميات لشركات صيانة الأجهزة وإدارة المرافق والمغاسل والسكن العمالي.
- تشكيلة صمامات الغسالات across different voltages and outlet counts.
الأسئلة الشائعة
Q1. What is the difference between 5221EA1009S and 5221EA1001H?
Both are LG triple valves at 12 V DC. The difference is in the build rather than the voltage: port orientation, mounting positions and terminal layout. Read the complete number off your valve and do not go by appearance.
Q2. What is the operating voltage?
12 فولت Connecting it to a 220 V circuit burns out all three coils immediately.
Q3. How many outlets does it have?
Three outlets with three coils and four electrical terminals. Count the coils on your old valve to confirm.
Q4. One path is not working, do I need the whole valve?
نعم. الصمام يُباع كوحدة واحدة بملفاته الثلاثة، ولا تُباع الملفات منفصلة.
غسالتي لا تمتلئ بالماء، هل أستبدل الصمام؟
Clean the mesh filter first and check the tap, the hose and the water pressure. A blocked filter is the leading cause of slow filling in Saudi Arabia.
