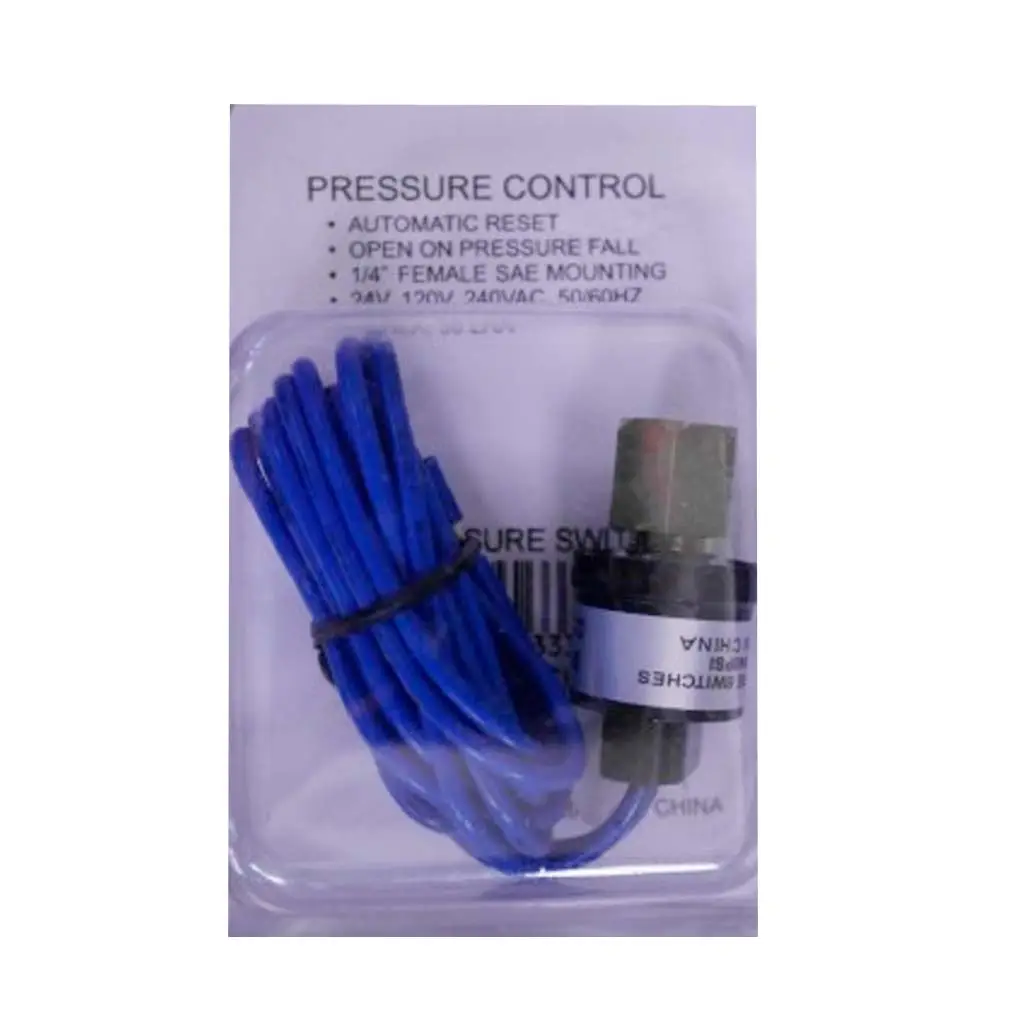

Low Pressure Switch 1/4″ Female SAE

• 1/4 in the female connector, single pole, single throw, auto reset.
• It is made with high-quality standards to meet OEM specifications.
• The low-pressure switch is mounted directly onto the flare pressure port.
• Female SAE mounting thread size 1/4″.
• The pressure setting is the pressure at which a switch will open or close. Usually, this can be adjusted within a specific range.
• Electrical rating: The switch’s capacity to handle voltage and current.

A low-pressure switch activates an electrical contact when a predetermined fluid pressure is attained at its input. The switch is built to activate in response to a rise in pressure or a fall in pressure. In the industrial sector, pressure switches are commonly utilized to monitor and manage systems that employ pressured fluids automatically.

The low-pressure switch is a silent guardian. It keeps everything running smoothly and safeguards important parts in the complex world of air conditioning and refrigeration systems. This hidden hero, who is frequently a modest and inconspicuous gadget, is essential to preserving ideal pressure levels and averting expensive malfunctions.

Let’s take a closer look at low-pressure switch 1/4″ female SAE connection, to learn more about its features, purpose, and significance for maintaining coolness.

The Pressure Sensor’s Purpose

A low-pressure switch combines the functions of an electrical switch and a pressure sensor. It has 1/4″ female SAE threads that screw straight into the refrigerant line. A pressure-sensitive diaphragm inside the switch senses any changes in pressure as refrigerant passes through the line. The diaphragm activates an internal mechanism that opens the electrical contacts in the switch when the pressure falls below a predefined set point. The compressor, which is the central component of the cooling system, loses power as a result of this open circuit.

Construction

The following are the components that make up a pressure switch.

Diaphragm: A pressure sensor is a diaphragm. The material is typically pliable and responsive to pressure.

Spring: A spring is used to adjust setpoints or cut-out points.

Lever: This is what makes the switch turn on and off.

Electrical connections: These allow current to come from an external power supply.

Terminals: These serve as the connection between the contacts and the external power source.

The Principle of Low-Pressure Switch Operation

A low-pressure switch is made to respond to situations with minute, mild, and low pressure. It only reacts directly to systemic pressure as a result. Moreover, a low-pressure switch might have electronic, adjustable, and explosion-proof features to better fit the intended function.

These features are useful for systems like steam, foam processing, plumbing, foam processing, and pneumatic systems that can—and frequently do—operate at low pressure.

Pros

Preventing an Explosion

An explosion or fire can be put out with the help of a low-pressure switch. The system can be equipped with an emergency shut-off feature to maintain safe, regulated operation and prevent potentially hazardous situations. This ensures that operators and employees won’t run the risk of serious harm or injury.

Save Money

Any refrigeration system must have a 1/4″ female SAE low-pressure switch. It works by first determining if the system pressure is too high or too low, and then adjusting the refrigerant flow. Low-pressure switches are safer and more efficient, so you can save money by using them.

Reduces Energy Consumption

When the environment changes, the use of a low-pressure switch aids in keeping the system’s fluid pressure within a desirable range. This lowers energy consumption by ensuring appropriate cooling power and efficient operation. This prolongs the life of the system and reduces operational costs related to frequent component replacements or repairs.

Safety

A low-pressure switch adds even more security. It can safeguard workers and operators in the case of a fire or explosion by having a suitable emergency shutdown feature. As a result, there are fewer possibilities of equipment damage or personal harm, which lowers legal costs and compensation costs.

Cons

Although low-pressure switch is an essential part of air conditioning and refrigeration systems, there are a few things to keep in mind about them:

One Point of Failure

Despite being an essential safety feature, the low-pressure switch still has a single point of failure. The switch won’t shield the compressor from harm if it malfunctions and won’t open at all, even at low pressure. Maintenance and inspections regularly are vital.

Trips That Cause Trouble

External causes have the unusual ability to trigger a shut-off of the switch even in the presence of normal pressure levels. Untrue readings could be caused by things like electrical fluctuations or vibrations.

Applications

The low-pressure switch is used in a wide range of industries for a variety of purposes, including:

• The industry of aerospace.
• This is important for many hydraulic applications.
• Industries that work with chemicals.
• In circumstances where cautious material handling is necessary.
• Laboratories or research-related fields.
• To guarantee appropriate testing.
• Handling of wastewater.
• Rapid and effective system control.

Conclusion

The 1/4″ female SAE low-pressure switch is important in many industrial applications, particularly air conditioning and refrigeration systems. Its durable design, excellent craftsmanship, and compliance with OEM requirements are evident in its diaphragm, spring, lever, and electrical connections for accurate functioning. The switch lowers energy consumption by maintaining optimal pressure levels. It improves safety by averting explosions and saves money by operating efficiently.

Regular maintenance mitigates potential downsides such as the likelihood of false trips and the possibility of single-point failure. The low-pressure switch is widely used to ensure safe and efficient laboratory research, chemical processing, hydraulic systems, aerospace, and wastewater handling operations. In intricate industrial settings, this little yet potent gadget is essential for preserving system integrity and functionality.
