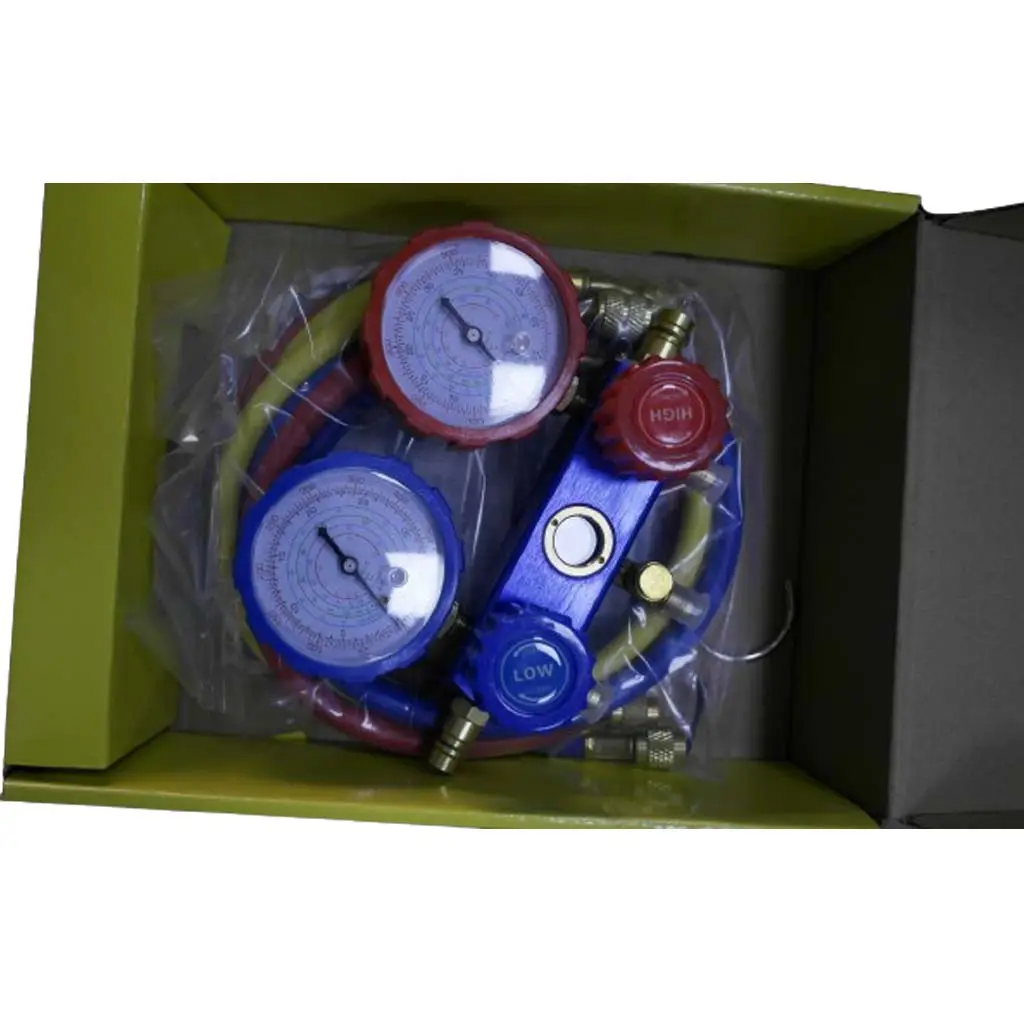

Manifold Gauge Refrigeration Service Product and Component
ر.س105.00 inc. VAT
Gauge # 410
An instrument used to check the pressure of refrigerants used in an HVACR system. Assures that the refrigerants in the system are properly set up and doing their job properly. It is used to ensure proper charging and to detect any problems.
Description
Introduction:
Manifold gauges are indispensable tools for anyone working in the refrigeration and HVAC industry. They play a critical role in diagnosing, maintaining, and repairing refrigeration systems. If you’re a professional or a DIY enthusiast, understanding how manifold gauges work and how to use them can save you a lot of time and effort.
Understanding Manifold Gauges:
Components of a Manifold Gauge:
A manifold gauge set typically includes the following components:
- Gauges: These measure the pressure in the refrigeration system.
- Hoses: These connect the manifold to the system being serviced.
- Valves: These control the flow of refrigerant.
- Connectors: These allow the manifold to attach to different service ports.
Types of Manifold Gauges:
There are mainly two types of manifold gauges:
- Analog Manifold Gauges: These use mechanical needles to display pressure readings.
- Digital Manifold Gauges: These provide digital readouts and often come with additional features like data logging.
How Manifold Gauges Work:
Basic Principle:
Manifold gauges work by connecting to the service ports of a refrigeration system. They measure the pressure of the refrigerant in the system, which can then be used to diagnose issues or perform maintenance tasks.
Detailed Functionality:
When you connect the hoses to the service ports, the gauges display the pressure readings. By comparing these readings to standard values, you can determine if the system is operating correctly or if there’s a problem that needs fixing.
Key Components of Manifold Gauges:
Gauges:
The gauges are the most crucial part of the manifold set. They come in high-pressure and low-pressure variants, each designed to measure different aspects of the system.
Hoses:
Hoses are typically color-coded for easy identification:
- Red: High pressure
- Blue: Low pressure
- Yellow: Service hose for refrigerant charging
Valves:
Valves control the flow of refrigerant and need to be operated carefully to avoid leaks or incorrect readings.
Connectors:
Connectors attach to the service ports and need to be compatible with the specific type of refrigerant used in the system.
Different Types of Manifold Gauges:
Analog Manifold Gauges:
Analog gauges are the traditional choice and are often preferred for their simplicity and reliability. They are less expensive but require careful reading and interpretation.
Digital Manifold Gauges:
Digital gauges offer more precision and often include features like temperature measurement and data logging. They are more expensive but can provide a wealth of information that analog gauges cannot.
Applications of Manifold Gauges:
Residential Refrigeration:
In homes, manifold gauges are used to service refrigerators, freezers, and air conditioning units.
Commercial Refrigeration:
In commercial settings, manifold gauges help maintain and repair larger systems like those found in supermarkets and restaurants.
Automotive Air Conditioning:
For vehicles, manifold gauges are essential for diagnosing and servicing air conditioning systems, ensuring they run efficiently.
How to Use a Manifold Gauge:
Step-by-Step Guide:
- Connect the Hoses: Attach the hoses to the manifold and the service ports on the system.
- Open the Valves: Allow refrigerant to flow into the gauges.
- Read the Gauges: Note the pressure readings.
- Compare Values: Check against standard pressure values to diagnose the system.
Common Mistakes to Avoid:
- Incorrect Connections: Ensure hoses are connected to the correct service ports.
- Misreading Gauges: Be sure to interpret the readings accurately.
- Not Checking for Leaks: Always inspect for any leaks before starting the measurement.
Maintenance and Care of Manifold Gauges:
Cleaning and Storage Tips:
- Clean Regularly: Wipe down the gauges and hoses after each use.
- Store Properly: Keep the manifold set in a protective case to avoid damage.
Troubleshooting Common Issues:
- Leaking Hoses: Replace hoses that show signs of wear.
- Faulty Gauges: Calibrate or replace gauges that do not provide accurate readings.
Advantages of Using Manifold Gauges:
Accuracy in Measurements:
Manifold gauges provide precise measurements, crucial for diagnosing and repairing refrigeration systems accurately.
Efficiency in Service:
Using manifold gauges can speed up the service process, making it easier to identify and fix issues.
Common Problems and Solutions:
Leak Detection:
Leaks can cause the system to lose refrigerant, leading to inefficiency. Manifold gauges can help identify leaks quickly.
Incorrect Readings:
Incorrect readings can lead to misdiagnosis. Ensure the gauges are calibrated and used correctly to avoid this issue.
Advanced Features in Modern Manifold Gauges:
Bluetooth Connectivity:
Some modern gauges come with Bluetooth, allowing data to be sent to a smartphone or tablet for easier analysis.
Data Logging:
Data logging features help track the system’s performance over time, aiding in more accurate diagnostics and maintenance planning.
Future Trends in Manifold Gauges:
Technological Innovations:
As technology advances, we can expect manifold gauges to become more sophisticated, with features like real-time monitoring and automated diagnostics.
Market Predictions:
The demand for more advanced and accurate manifold gauges is expected to grow, driven by the increasing complexity of refrigeration systems.
Safety Considerations:
Safe Handling Practices:
Always wear protective gear and handle refrigerants with care to avoid accidents.
Preventing Accidents:
Regularly inspect your manifold set for any signs of damage or wear and replace parts as necessary to maintain safety.
Conclusion:
Manifold gauges are essential tools for anyone working with refrigeration systems. Understanding their components, how they work, and how to use and maintain them can greatly enhance your efficiency and accuracy in service tasks. Whether you’re working on residential, commercial, or automotive systems, having the right manifold gauge can make all the difference.
FAQs:
Manifold gauges are used to measure the pressure in refrigeration systems to diagnose and perform maintenance.
Yes, but ensure the gauges and hoses are compatible with the refrigerants you’re working with.
It’s recommended to calibrate them at least once a year or whenever you notice inconsistent readings.
Digital gauges offer more features and precision, but analog gauges are reliable and easier to use for basic tasks.
Check for leaks, ensure proper connections, and consider calibrating or replacing the gauge if necessary.
