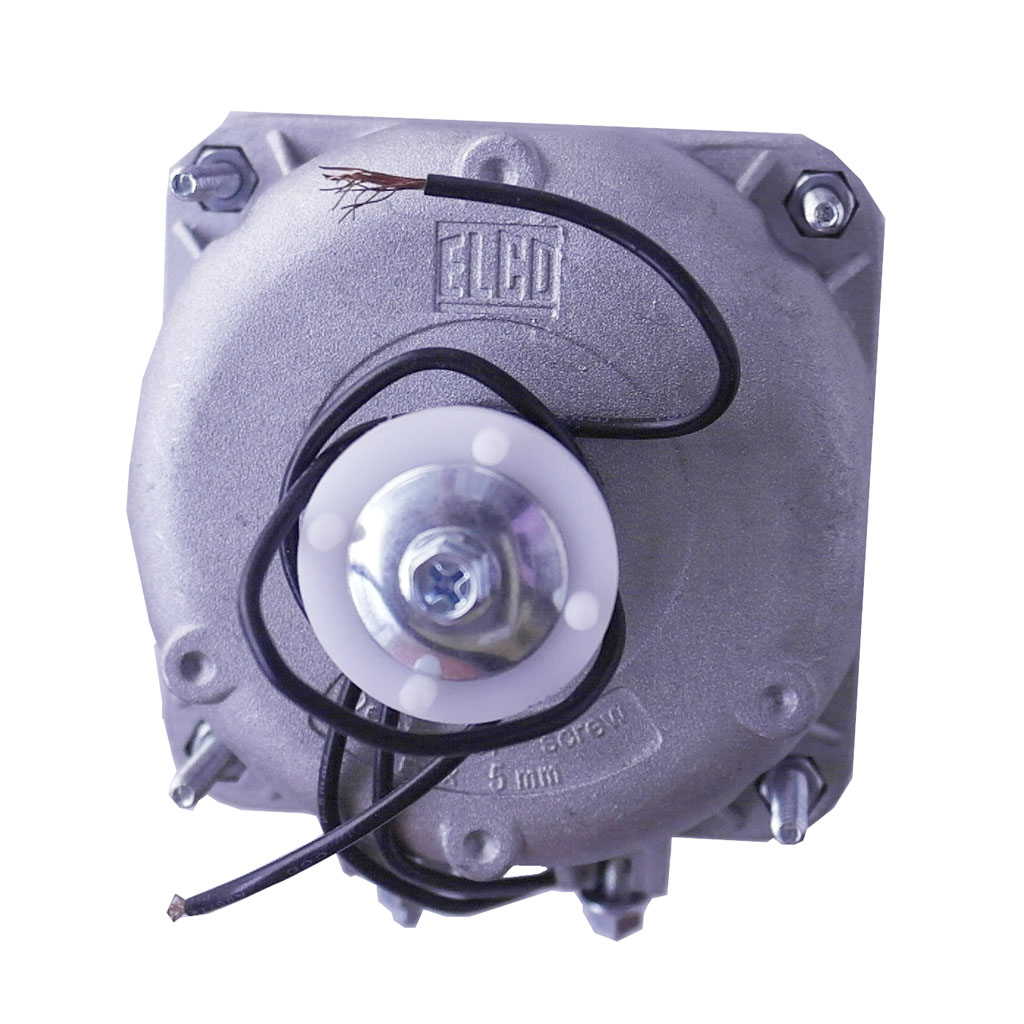

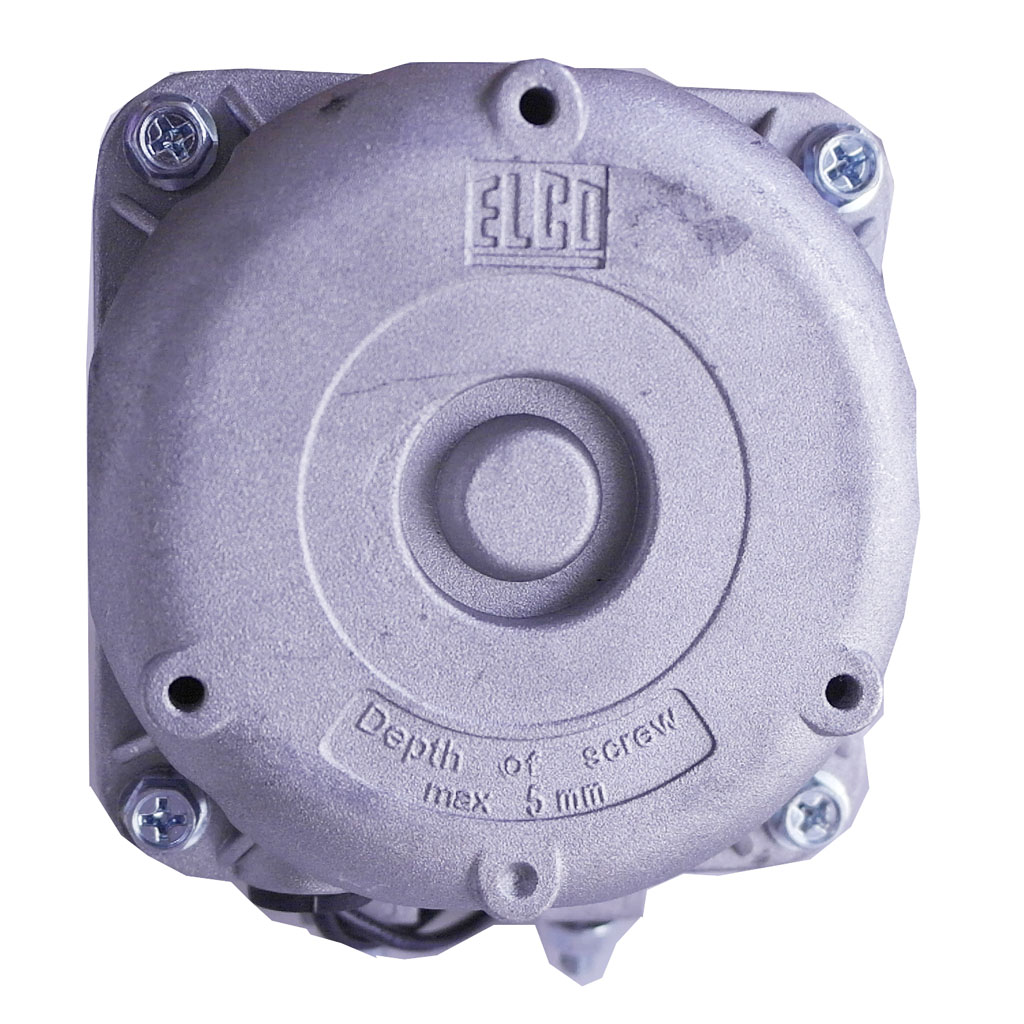

ELCO Italian Motor, Capacitor Motor, Heat Dissipate ELCO Motor. 5W, 10W, 16W, 25W

Features

• High-speed capacitor motor with a low current.
• Watts: 5, 10, 16, and 25.
• Excellent quality, compact design, and low weight.
• It has a nice appearance, a modern build, minimal noise, and mild vibration.
• The fan itself has great effectiveness in dissipating heat.

A motor is an apparatus that converts an energy source into mechanical power to generate motion. Electrical energy is transformed into mechanical energy by electric motors.

A capacitor motor is a one-phase alternating-current motor with two windings, a secondary winding that typically receives energy through a capacitor and a primary wiring that receives energy directly from the power line. The torque produced by the different-phase currents in the two windings is what makes up the motor’s torque.

Electronic circuits typically use capacitors. Response and distortion make up the force acting on the capacitor. Power dissipation in the form of heat occurs in the resistive component of the capacitor when it is exposed to a considerable quantity of ripple intensity or current. The heat produced raises the capacitor’s temperature and results in heating. The pace at which heat is generated internally and dispersed outside into the environment determines how much the temperature of the capacitor rises.

In this article, we’ll explore the working mechanism, types, pros, and uses of the Elco Italian motor.

Working on the Elco Italian Capacitor Motor

A motor capacitor has distinct main and secondary windings. The motor starts by connecting the primary wiring to the energy source, and the subsidiary windings by a capacitor.

The battery causes a little delay in the current flow when the energy source is turned on. With the current passing through the primary wiring first and the secondary wiring second. Because the primary and secondary windings’ currents differ in phase. Their waveforms are offset on the time axis, creating an alternating maximum magnetic field between the two wires. This torque causes the motor to turn on.

Motor Capacitor Types

The two most common motor capacitors are start and run capacitors.

Start Capacitor

A rotating switch connects a start capacitor to the motor wirings. It is used to boost motor torque at startup and enable quick on/off cycles for electric motors. At 75 percent of its maximum speed, the motor will cause the centrifugal button to cut the start capacitor off of the circuit.

The rotating button opens and disconnects the start capacitor when the motor achieves around 75% of its maximum speed, allowing the motor to run without assistance.

The following features are typical of start capacitors:

• They have a centrifugal switch that turns them on and off.
• Their capacitance ratings are often higher than 70 μF.
• Usually, they are described for a range of capacitance, such as 460 to 552 μF.
• The voltage ratings that they normally have are 125 V, 165 V, 250 V, and 330 V.
• A bleed-off resistor placed across the terminals can help release the stored charge in between uses.

Run Capacitor

In one-phase motors, a run capacitor keeps an auxiliary coil’s running torque constant while the motor is loaded. When the motor is running, these capacitors are regarded as continuous duty and will stay in the circuit even if the start capacitor fails. Run capacitors are not present in every one-phase motor.

Run capacitors often have the following advantages:

• Their capacitance ratings range from 1.5 to 100 μF on average.
• A single capacitance with a tolerance, such as 20 μF ± 6%, is usually provided for them.
• Their voltage ratings are higher, usually 240 V, 440 V, etc.

Advantages

There are many benefits of the Italian heat dissipate capacitor motor. Some of them are the following.

Effectiveness

ELCO Motors are well known for their great efficiency. Which ensures maximum use of electrical energy and minimizes waste.

Accuracy

Capacitor power sources sturdy design and outstanding heat dissipation qualities contribute to their exceptional dependability and lifetime.

The ability to adapt

The motor meets a variety of application requirements with a broad range of power capabilities, from 5W to 25W.

Small-size Design

Motor capacitors are ideal for installations with limited space because of their compact and space-efficient design. Which contrasts with their high power output.

Uses

Capacitor motors are used with one-phase electric motors. Which are used to power forced-air heat furnaces, motorized gates, air conditioners, and huge fans, among other household devices.

One-phase AC induction motors require motor start and run capacitors. These motors are employed in situations where a single-phase power source makes more sense than a three-phase one, like in home appliances. Start-and-run motor capacitors are commonly used in appliances such as compressors, vacuum cleaners, washing machines, tumble dryers, dishwashers, and power tools.

Wrapping Up

A variety of power options, outstanding quality, lightweight design, and effective heat dissipation are provided by the ELCO Italian Capacitor Motor. Its start and run capacitors are part of its capacitor-driven mechanism, which guarantees dependable performance in a variety of applications. This motor functions well as a solid option for powering both industrial and residential appliances due to its excellent accuracy, ease of use, and compact size.
