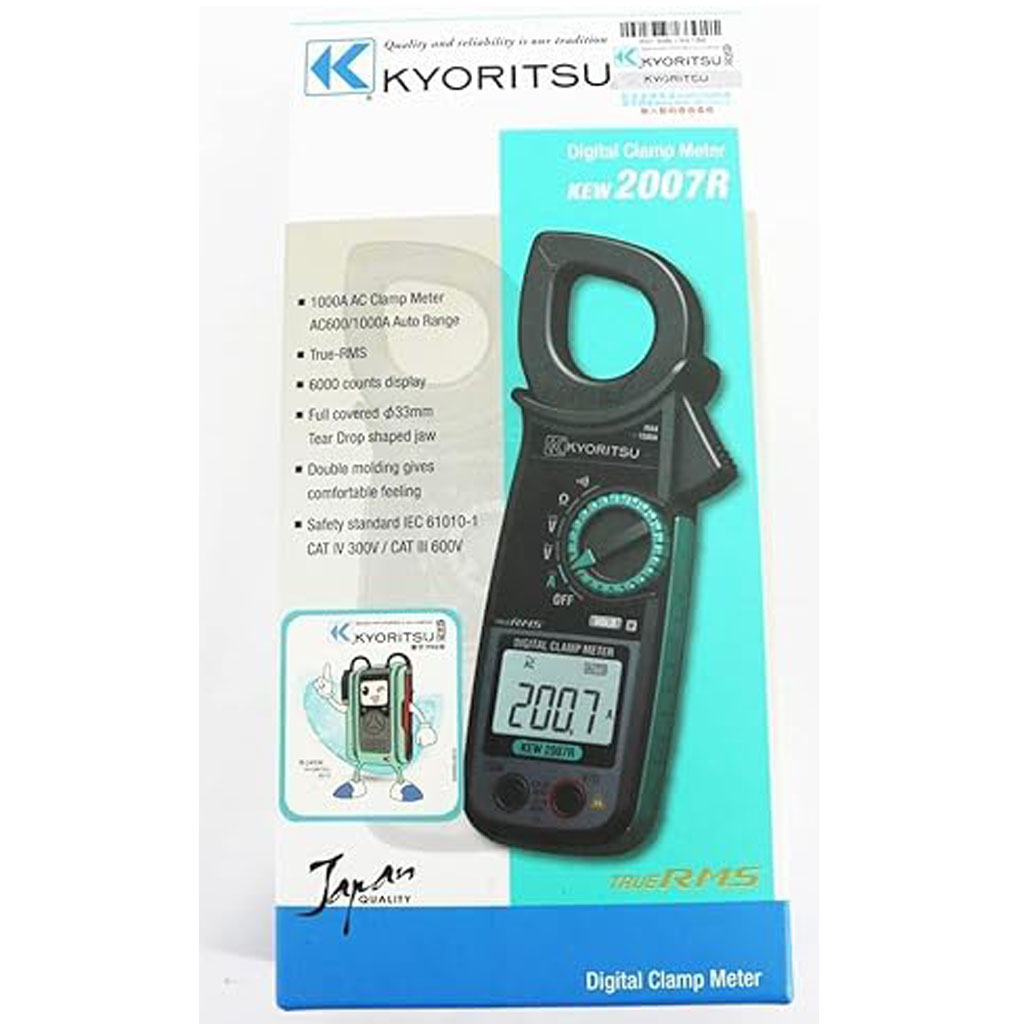

Digital Clamp Meter 2007, IEC 61010-1 CAT IV 300V / CAT III 600V

Introduction to Digital Clamp Meters:

Digital clamp meters are important tools for electrical maintenance and troubleshooting. Unlike traditional multimeters, clamp meters can measure current without disconnecting wires, making them highly convenient and safe to use.

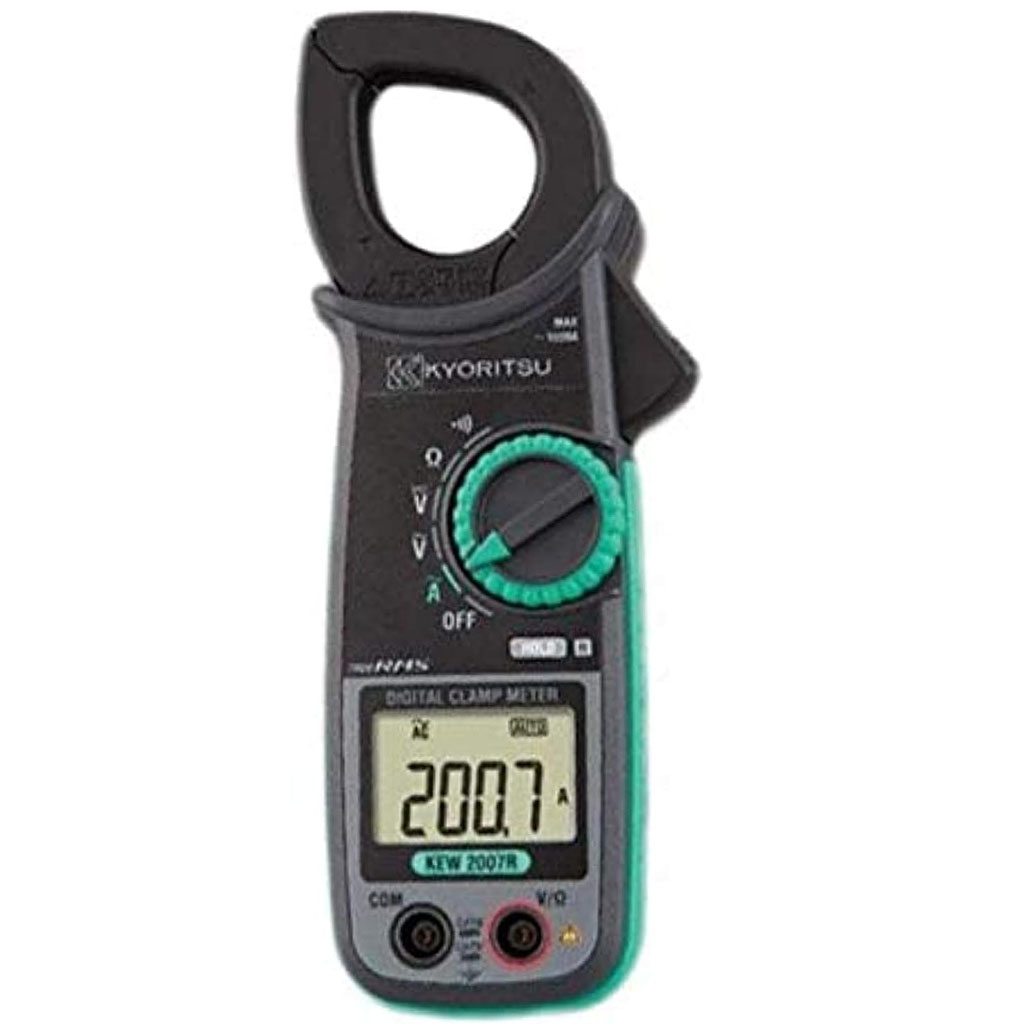

Understanding the Digital Clamp Meter 2007 Model:

The Digital Clamp Meter 2007 is a state-of-the-art device designed to meet the needs of modern electricians. Its compact design and user-friendly interface provide accurate readings of AC/DC, voltage, resistance, and more.

Specifications and Features:

• High accuracy measurements
• Large LCD for easy reading
• Jaw opening of 36mm for accommodating larger cables
• Built-in safety features such as overvoltage protection
• Compliance with IEC 61010-1 standards

Advantages of Using Digital Clamp Meters:

  Accuracy: Digital clamp meters provide highly accurate measurements of current, voltage, and resistance, allowing technicians to diagnose electrical issues with precision.

Non-invasive Measurements: Unlike traditional meters that require disconnecting wires for measurement, digital clamp meters can measure current without interrupting the circuit, making them safer and more convenient to use.

Dual Functionality: Most digital clamp meters can measure both AC and DC currents, offering versatility for various electrical applications.   Safety Features: Digital clamp meters are equipped with built-in safety features such as overvoltage protection, ensuring the safety of the user and the equipment being tested.

Easy-to-Read Displays: With large LCDs and clear readings, digital clamp meters make it easy for technicians to interpret measurements even in dimly lit environments.

Compact and Portable: Digital clamp meters are typically lightweight and compact, making them easy to carry around for on-site troubleshooting and maintenance tasks.

Data Logging Capabilities: Some advanced digital clamp meters feature data logging capabilities, allowing technicians to record and analyze measurements over time for better insights into electrical systems.

Fast Response Time: Digital clamp meters provide instant readings, allowing technicians to quickly assess the condition of electrical circuits and components.

Long Battery Life: With efficient power management systems, digital clamp meters often have longer battery life compared to analog counterparts, reducing downtime for battery replacement. Integration with Smart Devices: Many modern digital clamp meters can be connected to smartphones or tablets via Bluetooth or USB, enabling technicians to remotely monitor and analyze measurements for enhanced productivity.

Applications and Industries Using Digital Clamp Meters:

Electrical Maintenance and Repair: Electricians and maintenance technicians use digital clamp meters to diagnose and troubleshoot electrical issues in residential, commercial, and industrial settings. They are essential for testing circuits, measuring current, voltage, and resistance, and ensuring the proper functioning of electrical systems.

HVAC: HVAC technicians use digital clamp meters to measure current and voltage in HVAC systems to ensure proper operation and diagnose any electrical faults. They are used during installation, maintenance, and repair of heating, cooling, and ventilation equipment.

Automotive Diagnostics: Automotive technicians rely on digital clamp meters to test the electrical systems of vehicles. They use them to measure current and voltage in batteries, alternators, starter motors, and other components to diagnose issues such as charging system problems, short circuits, and parasitic battery drains.

Renewable Energy Installations: Professionals involved in the installation and maintenance of renewable energy systems, such as solar panels and wind turbines, use digital clamp meters to monitor and measure electrical parameters. They ensure the proper functioning of inverters, batteries, and other components critical for renewable energy generation.

Industrial Automation: Industries with automated processes, such as manufacturing plants and factories, utilize digital clamp meters for electrical maintenance and troubleshooting of machinery and equipment. They help in detecting faults, monitoring electrical loads, and ensuring the safety and efficiency of industrial operations.

Telecommunications: Telecommunications technicians use digital clamp meters to test and troubleshoot electrical circuits in communication systems, such as telephone networks, data centers, and fiber optic installations. They measure current and voltage to ensure reliable communication and diagnose issues affecting signal quality.

How to Properly Use a Digital Clamp Meter:

Safety Precautions:

• Always wear appropriate personal protective equipment (PPE)
• Ensure the meter is rated for the voltage being measured
• Keep fingers away from the jaws when taking readings

Measurement Techniques:

• Clamp the jaws around a single conductor to measure the current
• Select the appropriate function (AC/DC voltage, resistance, etc.) on the meter
• Read the measurement from the display and record it as necessary

Maintenance and Care Tips for Digital Clamp Meters:

• Store the meter in a clean, dry environment
• Calibrate the meter regularly according to manufacturer guidelines
• Inspect the leads and probes for signs of damage before each use

Conclusion:

The Digital Clamp Meter 2007, with its adherence to safety standards, advanced features, and ease of use, is an indispensable tool for professionals in the electrical industry. By investing in this reliable device, electricians can ensure accurate measurements and enhanced safety in their daily tasks.
