Centrifugal Fan UHFB 7E 11kw RPM:660 CFM:15000

Description of Centrifugal Fan UHFB 7E 11kw

• Speed of UHFB 6E 7.5kw is 660 RPM
• Air Flow is 15000 CFM.
• SIEMENS motor, IP 55 with class F insulation

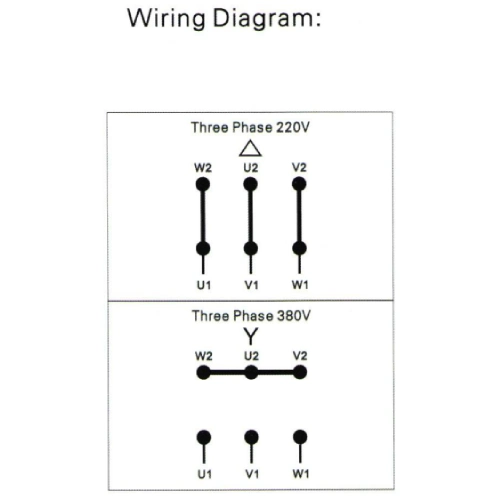

• Motor voltage: Three Phase 220/380V,50/60Hz
• High-efficiency motor
• Bearing: High-quality ball bearing
• Thermal overload protection
• The direction of rotation: Anticlockwise, seen on the impeller

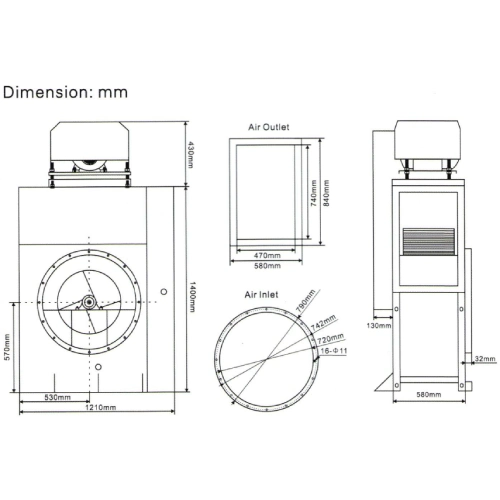

• The wheel diameter: 740mm
• The scroll housing thickness: 6mm
• The operating ambient temperature: -30°°C~+90°C

Note: THIS PRODUCT CAN ONLY BE SHIPD VIA THE REGULER Z-SHIPPING SERVICE. YOU HAVE TO PICK UP FROM THE SHIPPING OFFICE.
