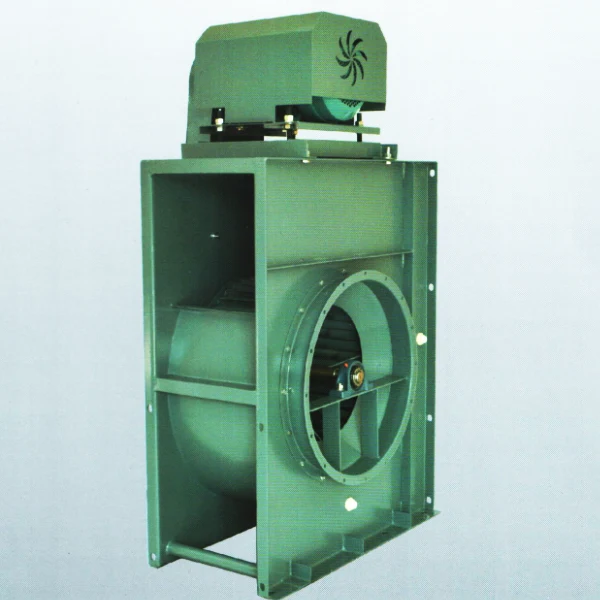

Centrifugal Fan UHFB 6E 7.5kw RPM:900 CFM:13300

Description of Centrifugal Fan UHFB 6E 7.5kw

• Speed of UHFB 6E 7.5kw is 900 RPM
• Air Flow is 13300 cfm
• SIEMENS motor, IP 55 with class F insulation
• Motor voltage: Three Phase 220/380V,50/60Hz
• High-efficiency motor
• Bearing: High-quality ball bearing
• Thermal overload protection
• The direction of rotation: Anticlockwise, seen on the impeller
• The wheel diameter: 600mm
• The scroll housing is: 5mm
• The operating ambient temperature: -30°C~+90°C

Note: THIS PRODUCT CAN ONLY BE SHIPD VIA THE REGULER Z-SHIPPING SERVICE. YOU HAVE TO PICK UP FROM THE SHIPPING OFFICE.
