Centrifugal Fan UHFB 7.5E 18kw RPM:750 CFM:17500

Description of Centrifugal Fan UHFB 7.5E 18kw

• Speed of UHFB 7.5E 18kw is 750 RPM
• Air Flow is 17500cfm
• SIEMENS motor, IP 55 with class F insulation

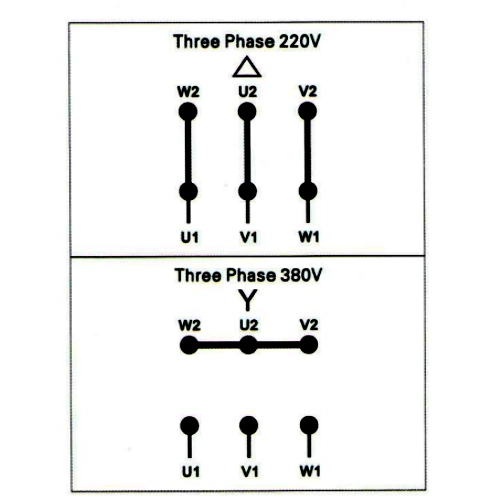

• Motor voltage: Three Phase 220/380V,50/60Hz
• The operating ambient temperature: -30°C~+90°C
• The direction of rotation: Anticlockwise, seen on the impeller
• High-efficiency motor
• Bearing: High-quality ball bearing
• Thermal overload protection
• The wheel diameter: 790mm
• The scroll housing is: 6mm

Ask for Quote

Note: THIS PRODUCT CAN ONLY BE SHIPD VIA THE REGULER Z-SHIPPING SERVICE. YOU HAVE TO PICK UP FROM THE SHIPPING OFFICE.
