Twin Tub Washing Machine Small Fitting 6 Wire Timer
The 6 wire wash timer with small fitting is the mechanical timer controlling the wash cycle on semi-automatic twin tub washing machines.

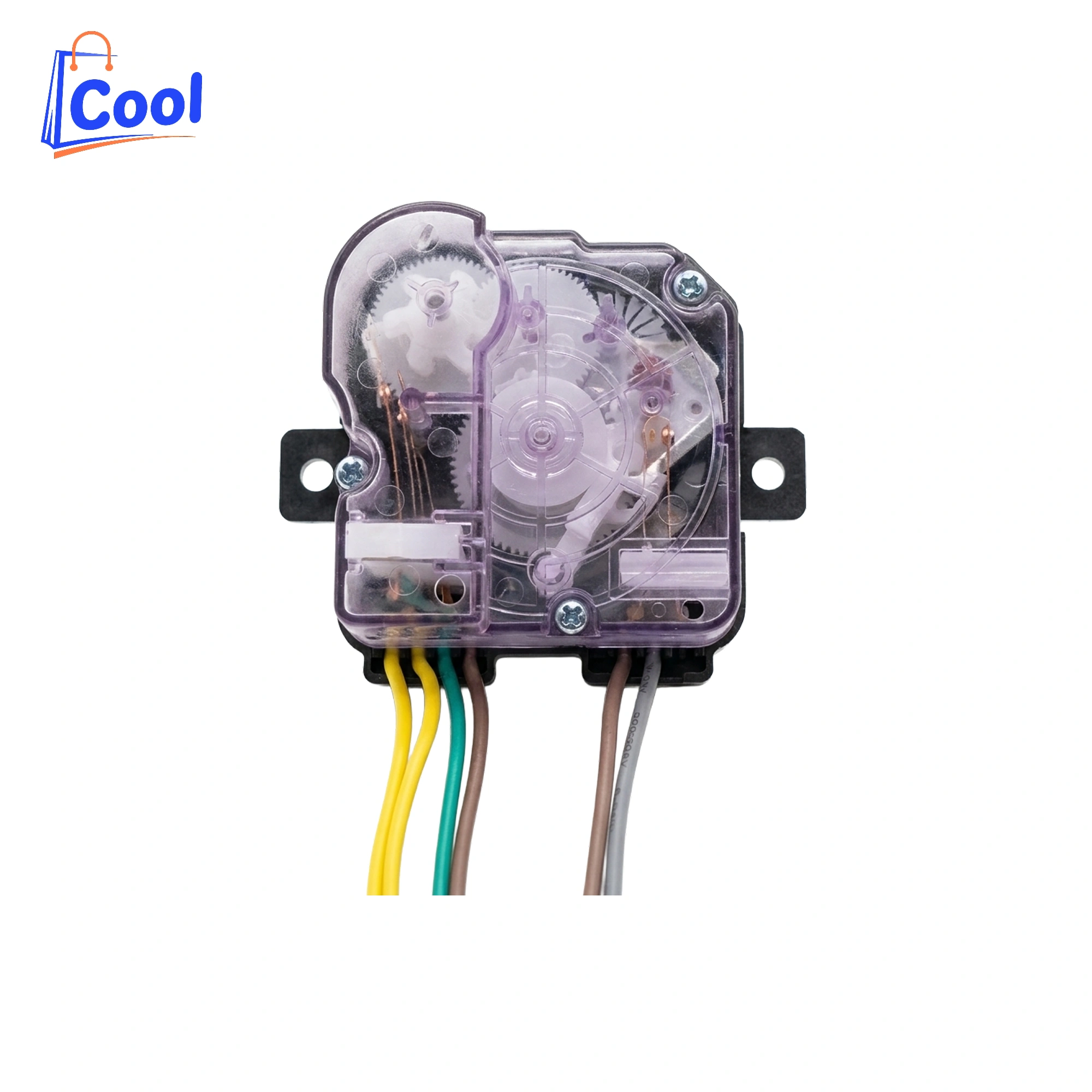

What distinguishes it is a fully transparent housing exposing the internal mechanism: the gear train, the cam disc and the copper contact fingers. That is not a cosmetic feature, it allows fault diagnosis visually without dismantling the part.
The six wires are split across two separate connectors, and the mounting base is the small size.
In stock at Cool.sa inside Saudi Arabia, with a VAT invoice and compatibility confirmed before you order.
Key Features
- Mechanical wash timer for semi-automatic twin tub washing machines
- Six wires for running and reversing the motor
- Two separate connectors distributing the wires
- Small mounting base with two ears
- Fully transparent housing allowing visual inspection of gears, cam and contact fingers
- Purely mechanical operation with no electronics, no programming and no battery
- Secure screw mounting through the fixing ears
Technical Specifications
| Specification | Value |
| Part type | Mechanical wash timer |
| Wire count | 6 |
| Connector arrangement | Two separate connectors |
| Fitting size | Small |
| Housing type | Fully transparent |
| Machine type | Semi-automatic, twin tub |
Why Buy Your Washing Machine Timer From Cool.sa
- We stock both fitting sizes and several wire counts, from three to seven, plus spin timers.
- We publish wire count, connector arrangement and fitting size. Most listings in this market say “washing machine timer” with no specification at all.
- We publish a photo of both connectors with the wire arrangement, which is what a technician needs before purchase.
- Compatibility confirmed before you order. Send a photo and a measurement and we confirm in writing.
- Stock inside Saudi Arabia with fast delivery.
- VAT invoicing for corporate, business and labour accommodation procurement.
- Bulk pricing for labour accommodation, laundries, repair companies and facilities management.
- Full range of washing machine spare parts to complete the repair from one supplier.
Frequently Asked Questions
Q1. The wire count matches, is that enough?
No. The connector arrangement and fitting size must match too. This timer splits its six wires across two separate connectors, and if your machine’s loom uses a single connector it will not connect directly.
Q2. What does small fitting mean?
It means the distance between the fixing holes is smaller than the large size. Measure the distance between your panel’s fixing hole centres, centre to centre, and send us the figure.
Q3. What is the transparent housing for?
It lets you see the gears, cam disc and contact fingers without dismantling the part. You diagnose a broken tooth or scorching by eye, and inspect the timer at each service with a single glance.
Q4. Can I use a three wire timer instead?
No. Wire count reflects the number of functions, and a three wire timer will not perform a six wire timer’s functions even if it physically fits.
Q5. One function fails while the others work, why?
Usually a burnt or bent contact finger inside the timer. Inspect through the transparent housing, where the evidence is clearly visible.
