YY DC PCB Universal Control System

Why a Universal Inverter PCB Belongs in Every Service Van

Split air conditioners do not usually fail because the compressor is dead. They fail because a control PCB has burned out, a capacitor has aged, or a power electronic component has cooked under repeated high-ambient summer cycles. In Saudi conditions, this is even more common. The compressor in a 3 or 5 year old inverter split is usually still healthy, but the original control board is fried. The owner has two real options. Replace the entire split unit, which is expensive and wasteful. Or replace only the failed PCB with a working board.

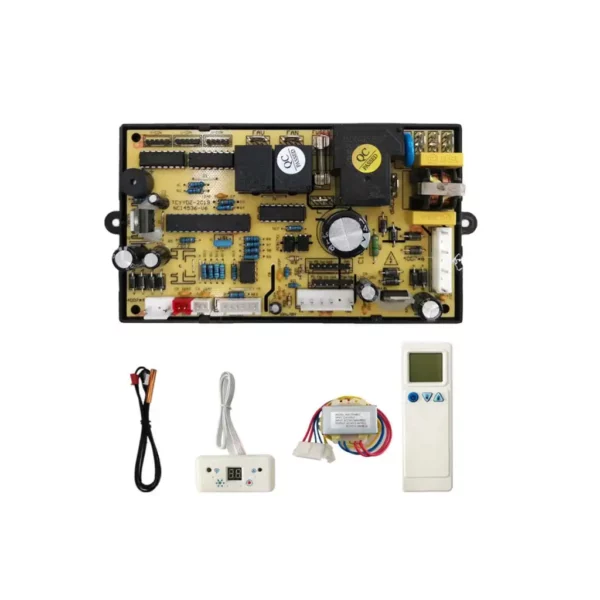

The YY DC PCB Universal Control System exists to make the second option practical at scale. It is a universal inverter PCB designed to drive both AC and DC inverter split air conditioners across multiple brands. With one board on the shelf, a technician can return any of dozens of failed units to service, instead of trying to source the exact original PCB for every brand and model.

The Practical Workflow for Technicians

A typical service call goes like this. The split AC stops cooling. The technician verifies the compressor and fans are mechanically healthy, the refrigerant charge is correct, and the failure is electrical. Inspection finds burnt components on the PCB or the unit will not power up at all. Sourcing the original board for the brand is either expensive, slow, or outright unavailable. The technician installs the YY DC PCB universal board, follows the wiring conversion guidance, pairs it with the supplied universal remote control, and the unit is back in service the same day.

Why This Matters in the Saudi Market

The Saudi split AC market is large, diverse, and works hard. Units from many brands operate in residential, retail, hotel, and small commercial environments. Many of these units are still mechanically sound long after the manufacturer has stopped supporting their original electronics. The universal PCB approach unlocks a practical repair business and extends equipment service life, which matters from both a cost-of-ownership and an environmental perspective.

What to Verify Before Installing

Confirm the AC unit is a split air conditioner (window units have different conventions). Confirm whether the unit is an AC or DC inverter. Confirm the compressor and fan motor types match the universal board’s drive capability. Always follow the wiring instructions supplied with the board, and use a qualified HVAC technician for installation. Universal PCBs replace the original control logic, so any existing fault outside the PCB itself must be diagnosed and corrected before installing the new board.

Applications / Best Use Cases

• Repair of split air conditioners with failed control PCBs
• Service replacement on AC inverter and DC inverter split AC units
• Mixed-brand service fleets where stocking every board is impractical
• Commercial portfolios with large numbers of split AC units across multiple brands
• Residential AC repair for technicians offering same-day fixes
• Restoring superheat control on units with failed electronic expansion valve drivers
• Cost-effective alternative to full unit replacement on mechanically healthy older splits

Technical Specifications

Why Buy YY DC PCB Universal Control System From Cool.sa

Cool.sa supplies practical, real-world repair parts for Saudi Arabia’s HVAC and split AC market. The YY DC PCB Universal Control System is one of those parts that turns a complete unit replacement into a same-day repair, and we keep it on the shelf for service technicians who need a working solution today, not next week. With nationwide delivery, technical product support, and a focus on parts that real installers actually use, Cool.sa is built for the way HVAC service businesses operate in the Kingdom.

Frequently Asked Questions

Q1: Will the YY DC PCB work on any split AC brand?

The YY DC PCB is designed as a universal control board for AC and DC inverter split air conditioners across multiple brands. However, compatibility depends on the compressor type, fan motor type, and original wiring configuration of the unit. Always follow the installation guide and ensure a qualified technician verifies compatibility before installation.

Q2: Can I install this board myself?

No. Replacing an inverter PCB involves working with mains voltage, charged capacitors, and sensitive DC inverter circuits. Installation should only be performed by a qualified HVAC technician who can also inspect the compressor, fan motors, sensors, and refrigerant system before powering the unit.

Q3: What does it mean that it drives both AC and DC compressors?

Some older inverter air conditioners use AC induction compressors with inverter speed control, while newer systems use DC brushless compressors. The YY DC PCB is designed to support both types, making it suitable for a wider range of inverter split AC units.

Q4: Will it restore inverter energy savings on the unit?

Yes. The PCB enables variable-speed control of both the compressor and fan motors, which is the core mechanism behind inverter efficiency. Replacing a failed board with the YY DC PCB restores the system’s ability to operate in inverter mode instead of fixed-speed operation.

Q5: Is this a more economical option than replacing the entire AC unit?

In most cases, yes. If the compressor, fan motors, and refrigeration circuit are in good condition, replacing only the faulty control PCB is significantly more cost-effective than replacing the entire air conditioning system. It also reduces downtime since a universal board is often easier to source than a brand-specific PCB.
