Washing Machine Dual Inlet Valve 220V RF-14S
ر.س90.00 Inclusive of VAT

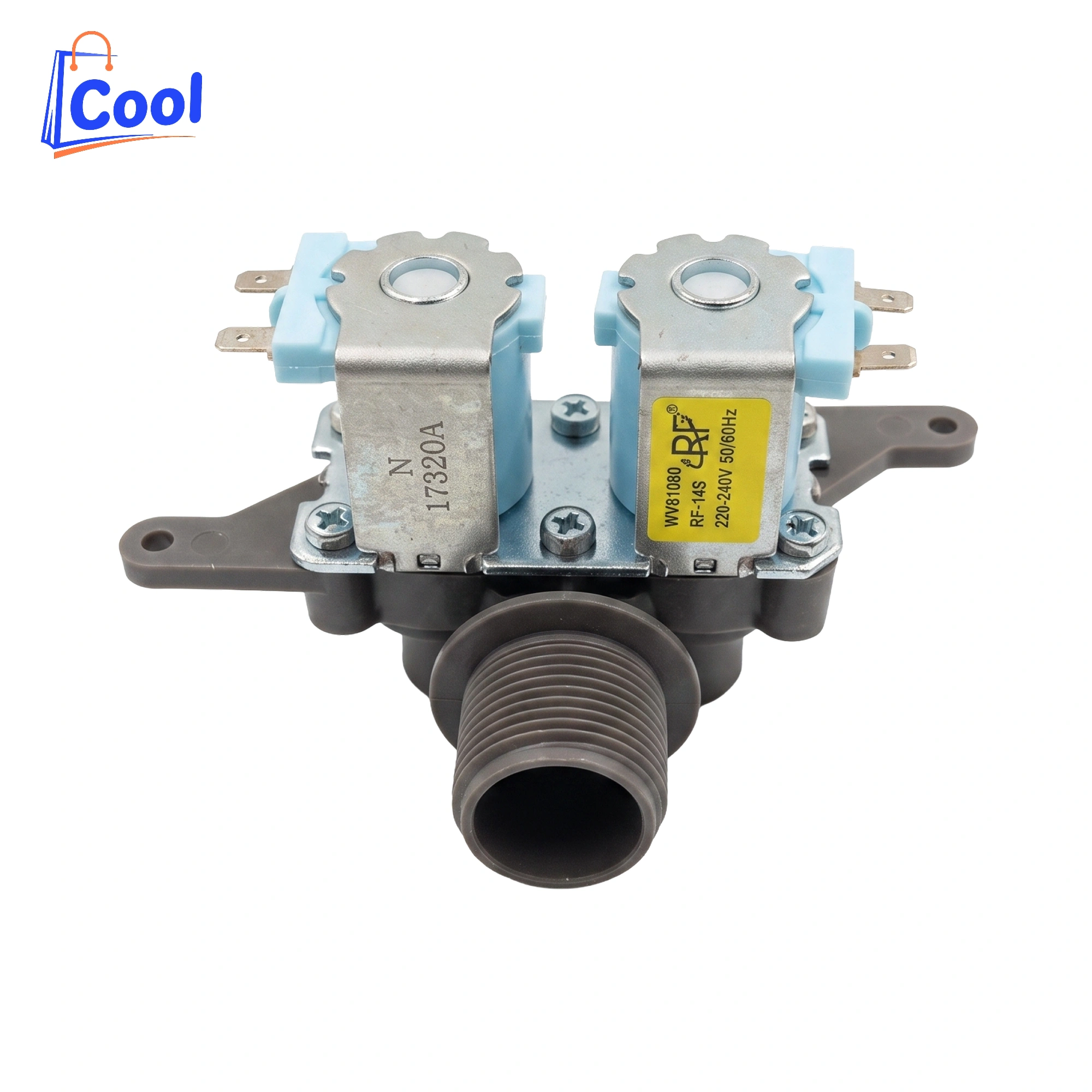

The water inlet valve model RF-14S is the dual outlet solenoid valve controlling water entry into an automatic washing machine on command from the control board. It operates at 220 to 240 V, 50/60 Hz, meaning it is fed directly from the mains.

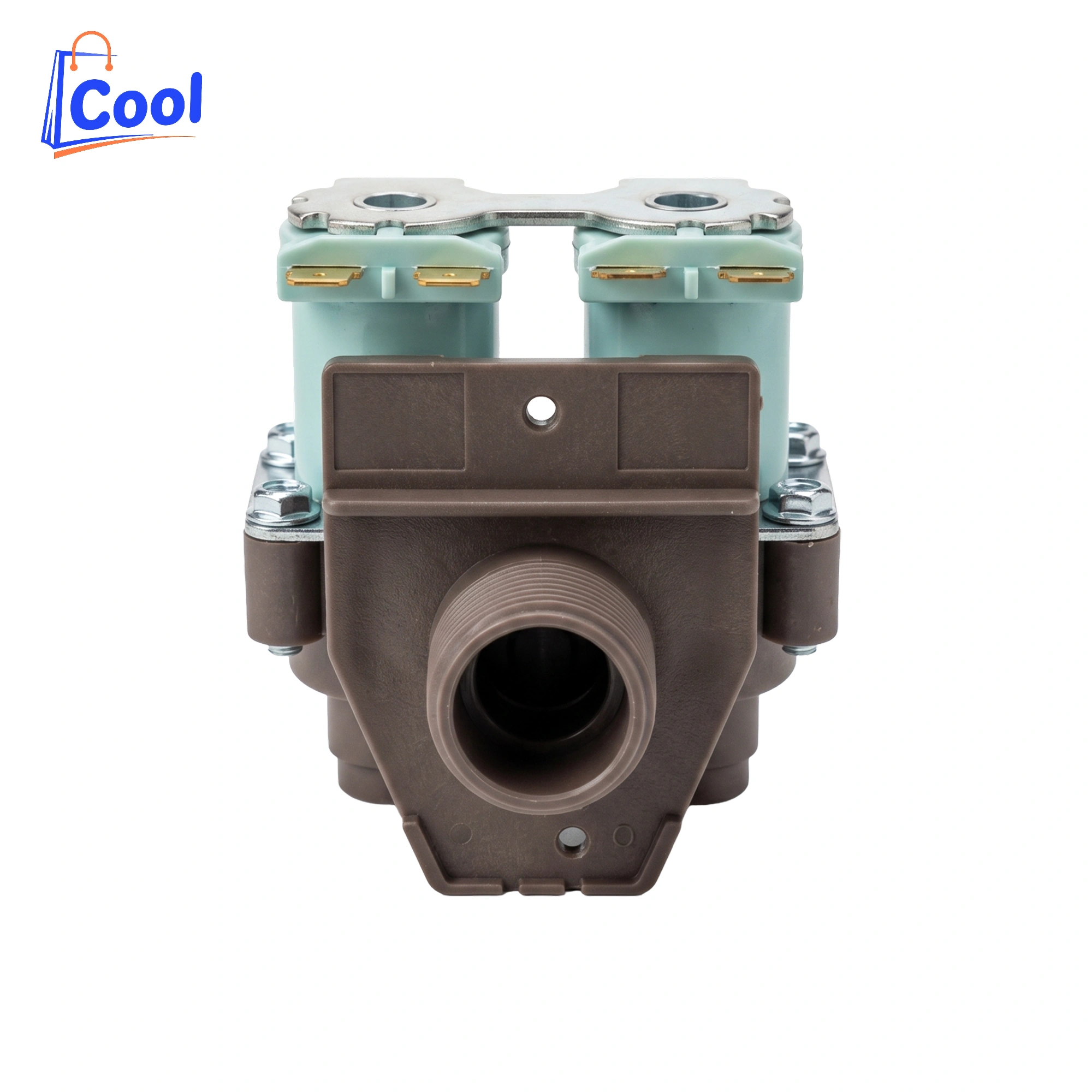

It carries two independent coils, each opening a separate water path: one to the tub and one to the detergent drawer depending on the programme stage. A single threaded inlet takes the supply hose, with an internal mesh filter trapping sand and sediment.
In stock at Cool.sa inside Saudi Arabia, with a VAT invoice and compatibility confirmed before you order.
Key Features
- Two outlets with two independent solenoid coils
- 220 to 240 V, 50/60 Hz matching the Saudi grid
- Model RF-14S, coil code WV81080
- Single threaded inlet for direct supply hose connection
- Internal mesh filter trapping sediment before it enters the machine
- Metal mounting bracket with fixing holes on both sides
- Flat spade terminals
- Direct replacement for the original valve
Technical Specifications
| Specification | Value |
| Model | RF-14S |
| Coil code | WV81080 |
| Part type | Solenoid water inlet valve |
| Voltage | 220 to 240 V AC |
| Frequency | 50/60 Hz |
| Number of outlets | 2 (dual) |
| Number of coils | 2 |
| Inlet type | Threaded, single inlet |
| Filter | Internal mesh |
| Mounting | Metal bracket with fixing holes |
| Connection | Flat spade terminals |
Why Buy Your Washing Machine Valve From Cool.sa
- Complete clarity on voltage and outlet count. Both published plainly, and we help you determine what you need before you pay.
- Compatibility confirmed before you order. Send a photo of the old valve’s label, a photo showing the coil count, and your machine model number.
- Stock inside Saudi Arabia with fast delivery, because a broken washing machine does not wait for an international shipment.
- VAT invoicing for corporate, business and labour accommodation procurement.
- Bulk pricing for appliance repair companies, facilities management, laundries and labour accommodation.
- Companion parts from the same stock: drain pumps, filters, and fill and drain hoses.
- Full range of washing machine valves across different voltages and outlet counts.
Frequently Asked Questions
Q1. What is the operating voltage of this valve?
220 to 240 V AC at 50/60 Hz, meaning it is fed directly from the mains. This differs from the 12 V DC valves used by modern LG machines.
Q2. How do I know whether my machine needs 220 V or 12 V?
Read the label printed on the currently fitted valve, where the voltage is stated clearly. If the label is faded or worn, send us a photo of the valve with your machine model number.
Q3. What happens if I fit a 12 V valve in place of a 220 V one?
Its coils burn out within seconds and the new part is destroyed. Voltage is the first thing to confirm, ahead of outlet count and ahead of physical appearance.
Q4. How many outlets does it have?
Two outlets with two independent coils. Count the coils on your old valve to confirm, since single and triple valves are not interchangeable with a dual.
Q5. One path is not working, do I need the whole valve?
Yes. The valve is sold as a single unit with both coils, and the coils are not sold separately.
