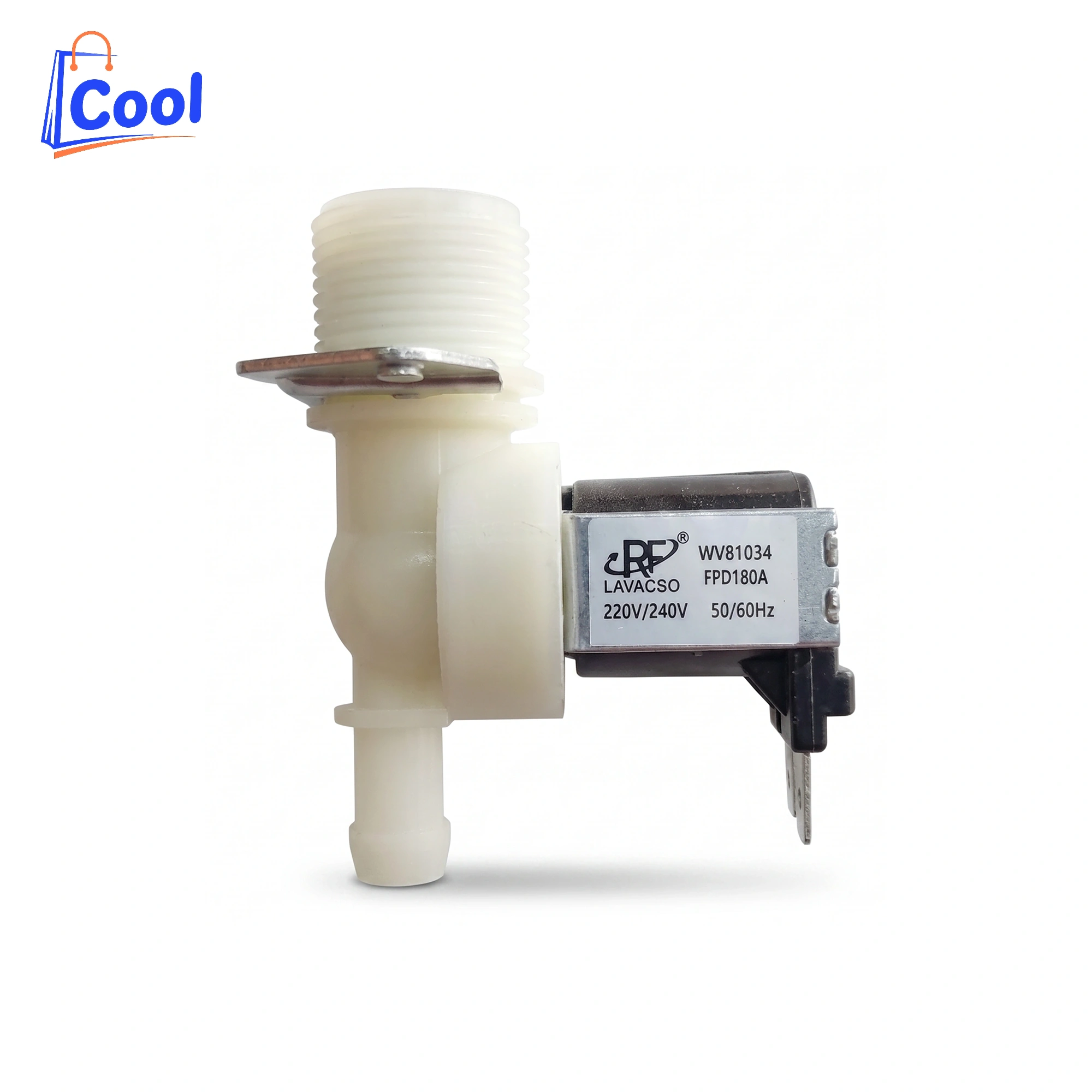

Washing Machine Single Inlet Valve 220V FPD180A
ر.س25.00 Inclusive of VAT

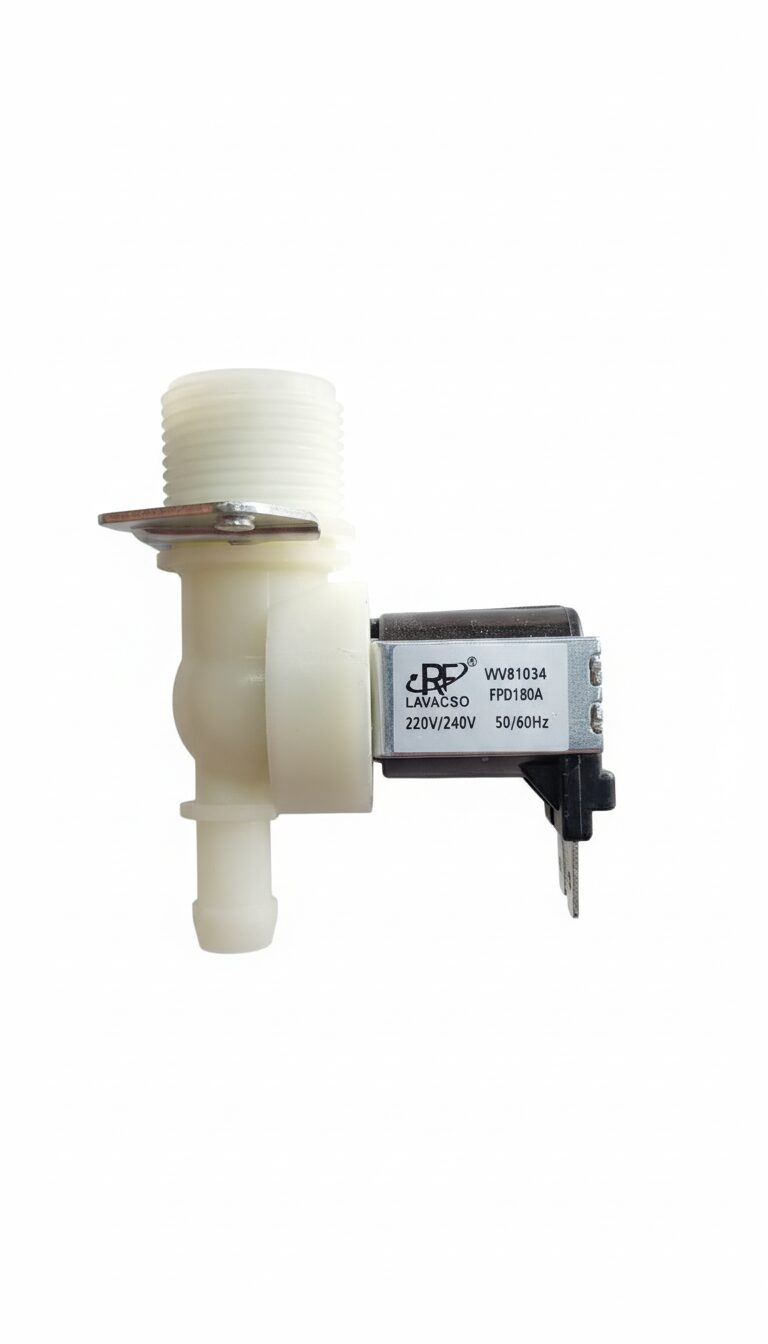

The water inlet valve model FPD180A is the single outlet solenoid valve controlling water entry into an automatic washing machine on command from the control board. It operates at 220 to 240 V, 50/60 Hz, fed directly from the mains.
It carries one coil and one water path, with a threaded inlet for the supply hose, a barbed outlet for the machine’s internal hose, a metal mounting bracket and two electrical terminals.
In stock at Cool.sa inside Saudi Arabia, with a VAT invoice and compatibility confirmed before you order.
Key Features
- One outlet with a single solenoid coil
- 220 to 240 V, 50/60 Hz matching the Saudi grid
- Model FPD180A, coil code WV81034
- Threaded inlet for direct supply hose connection
- Barbed outlet for the machine’s internal hose
- Internal mesh filter trapping sediment
- Metal mounting bracket with a fixing hole
- Two flat spade terminals
- Compact size suiting tight spaces inside the machine
Technical Specifications
| Specification | Value |
| Model | FPD180A |
| Coil code | WV81034 |
| Part type | Solenoid water inlet valve |
| Voltage | 220 to 240 V AC |
| Frequency | 50/60 Hz |
| Number of outlets | 1 (single) |
| Number of coils | 1 |
| Inlet type | Threaded |
| Outlet type | Barbed |
| Filter | Internal mesh |
| Mounting | Metal bracket with fixing hole |
| Connection | Two flat spade terminals |
Why Buy Your Washing Machine Valve From Cool.sa
- We confirm the outlet count before you order. Send a photo of your old valve and we will count the coils, so you do not buy a single for a machine that needs a dual.
- Complete clarity on voltage. Published plainly, and we help you determine what you need before you pay.
- Stock inside Saudi Arabia with fast delivery.
- VAT invoicing for corporate, business and labour accommodation procurement.
- Bulk pricing for repair companies, facilities management, laundries and labour accommodation.
- Companion parts from the same stock: drain pumps, filters, and fill and drain hoses.
- Full range of washing machine valves across different voltages and outlet counts.
Frequently Asked Questions
Q1. Can a single valve replace a dual valve?
No. A single valve may physically fit, but it leaves one water path with no supply. The result is detergent never being drawn from the drawer, or a whole programme stage doing nothing, with no error code from the machine. Count the coils on your old valve before ordering.
Q2. What is the operating voltage?
220 to 240 V AC at 50/60 Hz, fed directly from the mains. This differs from the 12 V DC valves used by modern LG machines.
Q3. How do I know how many outlets I need?
Count the metal coils on the currently fitted valve. One coil means single, two means dual, and three means triple. The count must match exactly.
Q3. My machine will not fill, should I replace the valve?
Clean the mesh filter first and check the supply tap, the hose, and the water pressure. A filter blocked with sediment is a leading cause of slow filling in Saudi Arabia, and cleaning it may save you the cost of the part.
Q4. Water enters while the machine is switched off, why?
The valve is mechanically stuck open. Close the water tap immediately and replace the valve before a flood occurs.
